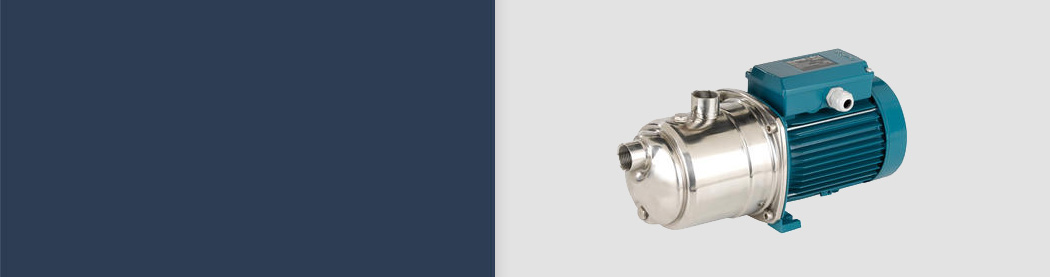

Calpeda MXH Range
Horizontal Multi-Stage Close Coupled Pumps in stainless steel.
FLOW
1 / 66 mc/h
HEAD
5.5 / 68 m
POWER
0.33 / 7.5 kW
Construction: Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel.
Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top. Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box).
MXHL: Horizontal multi-stage close coupled pumps in chromenickel-molybdenum stainless steel AISI 316L.
MXH TECHNICAL DATA
– For water supply.
– For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
– Universal pump, for civil and industrial applications, for garden use and irrigation.
Calpeda MXP Range
Horizontal Multi-Stage Close Coupled Pumps.
FLOW
1 / 7.2 mc/h
HEAD
5 / 40 m
POWER
0.33 / 0.75 kW
Construction : Horizontal multi-stage close coupled pump.
Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top.
Stages in Noryl.
MXP TECHNICAL DATA
For water supply.
For domestic use, for garden use and irrigation.
Calpeda MGP Range
Horizontal Multi-Stage Close Coupled Pumps.
FLOW
1 / 7.2 mc/h
HEAD
5 / 40 m
POWER
0.33 / 0.75 kW
Construction : Horizontal multi-stage close coupled pump.
Single-piece barrel casing in cast iron, with front suction port above pumps axis and radial delivery at top.
Stages in Noryl.
MGP TECHNICAL DATA
– For water supply.
– For domestic use, for garden use and irrigation.
Calpeda MXV-B Range
Vertical Multi-Stage Close Coupled Pumps.
FLOW
1 / 25 mc/h
HEAD
9 / 120 m
POWER
0.75 / 7.5 kW
Construction : Vertical multi-stage close coupled pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).
All parts that come into contact with the liquid, including wet-end covers, are in chrome-nickel stainless steel with corrosion resistant bearing sleeves lubricated by the pumped liquid.
MXV-B TECHNICAL DATA
– For water supply systems.
– For clean non-explosive liquids, without solid, filamentary or abrasive matter and non-aggressive for stainless steel (with adaptation of sealing materials on request).
– A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.
Calpeda MPSU Range
Vertical multi-stage close coupled pumps.
FLOW
1 / 7.2 mc/h
HEAD
8 / 78.5 m
POWER
0.45 / 1.5 kW
Construction : 5” Vertical multi-stage close coupled submersible or surface pumps.External jacket in stainless steel AISI 304 and stages Noryl.MPSUM with built-in capacitor, accessible through the delivery casing.Suction connection on the lower casing and delivery connection on the top casing.Motor cooled by the pumped water passing between the motor jacket and the external jacket.Double mechanical shaft seal with interposed oil chamber.
MPSU TECHNICAL DATA
– For clean water without abrasives or additives aggressive for the materials of the pump.- For domestic, civil and industrial applications.- For installation in confined space with minimum ventilation.- For installation in locations subject to risk of temporary flooding, the pump can be fully immersed.- For installation in areas exposed to water jetting.- When low-noise operation is required.
Calpeda MXV Range
Vertical Multi-Stage In-Line Pumps.
FLOW
0.6 / 60 mc/h
HEAD
3 / 275 m
POWER
0.55 / 22 kW
Construction : Vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).
Corrosion-resistant bearing sleeves lubricated by the pumped liquid.
A pump with thrust bearing and sleeve coupling for use of any standard motor with IM V1 construction.
MXV TECHNICAL DATA
– For water supply systems.
– For clean non-explosive liquids, without solid, filamentary or abrasive matter (with adaptation of sealing materials on request).
– A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.
