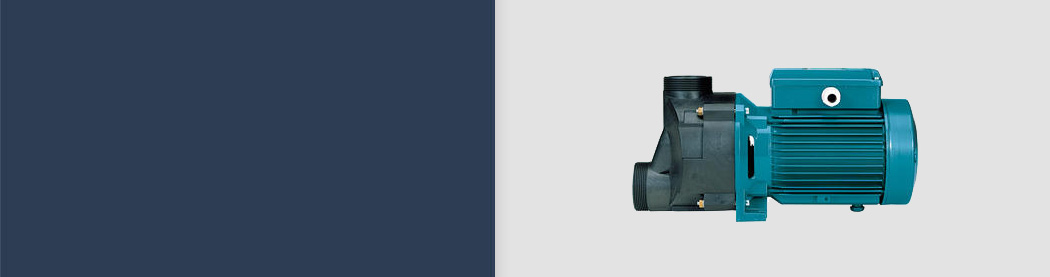

Calpeda SPA Range
Self-Draining Whirlpool Pumps.
FLOW
3 / 18 mc/h
HEAD
4.7 / 16.5 m
POWER
0.45 / 1.1 kW
Construction: Self-draining, single-impeller pumps, with motor insulated from pumped water, constructed with high quality, corrosionproof plastic materials, with stainless steel diffuser.
Compact design (158 mm wide).
PVC pipe connections:
Ports for cementing joint, with external thread for union coupling.
Calpeda MPC Range
Self-Priming Swimming Pool Pumps.
FLOW
3 / 40 mc/h
HEAD
4.2 / 18 m
POWER
0.37 / 2.2 kW
Construction : Self-priming swimming pool pumps with built-in strainer and motor insulated from pumped water.
The pump is made with high quality plastic materials, corrosion and sand erosion resistant.
With stainless steel diffuser.
Base-plate kit.
MPC TECHNICAL DATA
– For water circulation in swimming pool filtration systems.
– For clean or slightly dirty water with solids in suspension.
Calpeda NMP Range
Self-Priming Centrifugal Pumps with built-in strainer.
FLOW
6.6 / 108 mc/h
HEAD
3 / 37.5 m
POWER
0.55 / 11 kW
Construction : Close-coupled self-priming centrifugal pumps with built-in strainer.
Inner basket with Ø 3 mm holes.
NMP: version with pump casing and lanter bracket in cast iron.
B-NMP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
NMP TECHNICAL DATA
– For water supply.
– For domestic use, for garden use and irrigation.
Calpeda PF Range
Pre-filters in stainless steel.
Pre-filters in stainless steel
Construction : Pre-filters with removable basket, constructed in stainless steel.
Loose ring flange connections.
Clamp type closing with lever and double adjustment clamp.
Inner basket with Ø 6 mm holes.
PF TECHNICAL DATA
– For water circulation pump in filtration plants in swimming pools.
– To prevent foreign bodies from entering the pump and the plant.
