Cintropur Centrifugal Filter TIO – Technical Data



TI0 CENTRIFUGAL FILTER
	Cintropur Centrifugal Filter TIO		TIO Technical Data

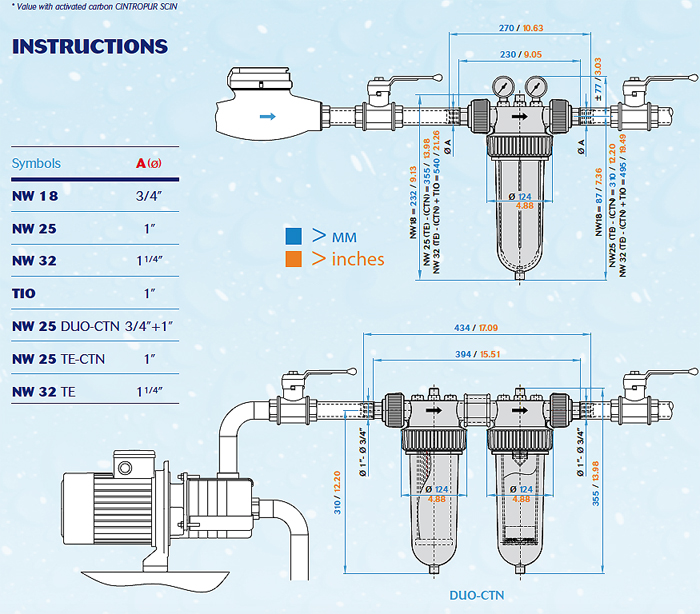

	TIO Assembly Instructions



Filter type	NW 18	NW 25	NW 32	TIO	NW 25 DUO-CTN	NW 25 TE-CTN	NW 32 TE
Diameter of pipe	3/4”	3/4” or 1”	11/4”	1”	3/4” + 1”	1”	11/4”
Average flow rate : m3/h	3.5	5.5	6.5	0.5*	0.5*	0.5*	0.5*
Working pressure : bar	10	10	10	10	10	10	10
Max. operating pressure : bar	16	16	16	16	16	16	16
Max. operating temp °C	50° C	50° C	50° C	50° C	50° C	50° C	50° C
Weight : Kg	0.9	1.2	1.7	1.8	2.4	1.3	1.6
Standard filter sleeve	25 μ	25 μ	25 μ	25 μ	25 μ	-	-
Available volume : Ltr	-	-	-	0.57	0.57	0.57	0.70
Filtration Pressure :	190	450	840	335	1 x 450	-	-
