PRO RANGE RO WATER FILTERS
- Manufactured in the UK
- Unbeatable Recovery & Efficiency
- 316 Stainless Steel Frame & Pipework
- 2 Line LED Display
- Customisable Colour and Logo
- Stainless Solenoids and Control Valves
- Fully Programmable
- Fully Factory Tested
- IP65 Rated
£8,995.00 - £10,794.00 (inc. VAT)
£8,300.00 - £9,960.00 (inc. VAT)
£7,800.00 - £9,360.00 (inc. VAT)
£6,995.00 - £8,394.00 (inc. VAT)
£4,449.00 - £5,338.80 (inc. VAT)
TECHNICAL DATA
| IWE Pro Range Reverse Osmosis Water Filter | Pro 300 | Pro 600 | Pro 900 | Pro 1200 | Pro 1500 | |
| Permeate flow rate | l/h | 300 | 600 | 900 | 1200 | 1500 |
| Min. salt rejection | % | 97 | 97 | 97 | 97 | 97 |
| Recovery | % | 75 | 75 | 75 | 75 | 75 |
| Operating pressure | bar | 14 | 14 | 12 | 11 | 10 |
| Membrane element / number | 4040 / 1 | 4040 / 2 | 4040 / 3 | 4040 / 4 | 4040 / 5 | |
| Voltage | V/Hz | 240 | 240 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 |
| Motor power | kW | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
| Pre-fusing | A | 13 | 13 | 16 | 16 | 16 |
| Feedwater connection | R | 20 | 20 | 20 | 20 | 20 |
| Permeate/concentrate connection | DN | 20 | 20 | 20 | 20 | 20 |
| Conductivity range | μS/cm | 2 – 200 | 2 – 200 | 2 – 200 | 2 – 200 | 2 – 200 |
| Min. / max. feed water pressure | bar | 2 / 6 | 2 / 6 | 2 / 6 | 2 / 6 | 2 / 6 |
| Min. / max. feed water temp | °C | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 |
| Max. ambient temperature | °C | 40 | 40 | 40 | 40 | 40 |
| pH | 3 – 11 | 3 – 11 | 3 – 11 | 3 – 11 | 3 – 11 | |
| Height | mm | 1650 | 1650 | 1650 | 1650 | 1650 |
| Width | mm | 500 | 500 | 660 | 660 | 660 |
| Depth | mm | 500 | 500 | 690 | 690 | 690 |
| Weight approx | ca. kg | 135 | 135 | 150 | 180 | 195 |
OPTIONAL EXTRAS
Reverse Osmosis – Inverter Drive Upgrade
Power Saving. Grundfos Inverters. SMS Compatible
Reverse Osmosis – Bunded with leak detection
Sealed Unit. Leak Detection. Auto Shut Off. SMS Compatible
Reverse Osmosis – Antiscalant Dosing
Manufactured in the UK. In built level switches. 100 Ltr Capacity. Start / Stop Signal. Interfaces directly with RO. Stainless Steel Skid Option

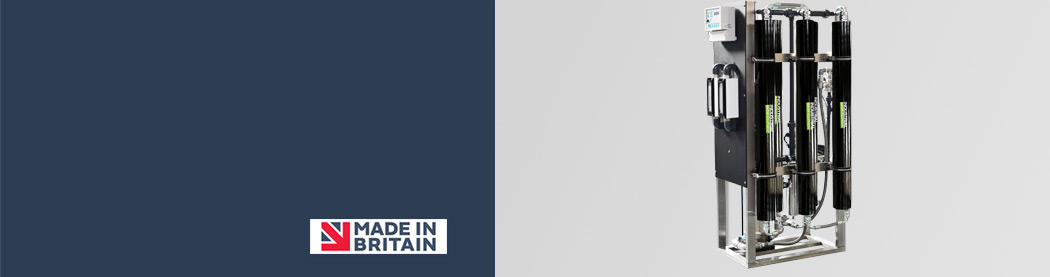

Pro Range Reverse Osmosis Water Filters
Industrial Water Equipment now manufacture a brand new range of Reverse Osmosis Systems. Each unit is manufactured and tested in our new factory in Matlock, Derbyshire.
All of our units are fully bespoke with choices of colour and inclusion of your own logo. Utilising only the best materials we believe they are the best engineered and most efficient Reverse Osmosis Systems available on the market.
