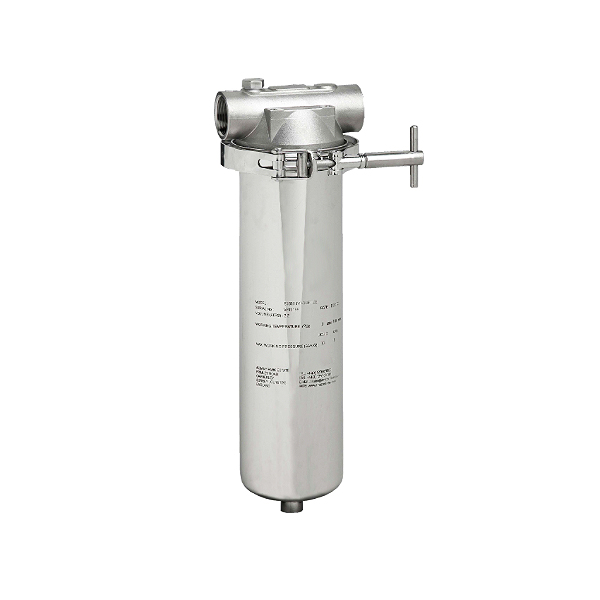

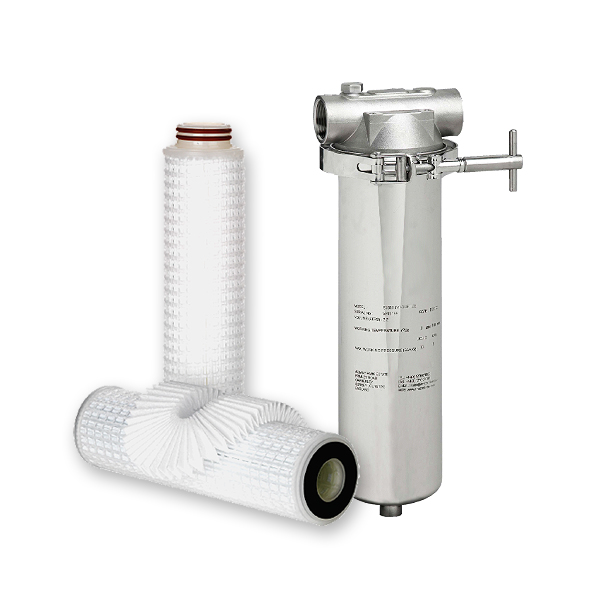

3000 l/hr Cryptosporidium Housing and Filter

10 bar Stainless Steel Housing with 1″ BSP Connections.

Complete with 1×10″ Crypto Guard 2 Cartridge Filter

Cartridge Housing Features

• Quick release Vee Clamp Closure for easy opening
• Lightweight, high specification investment cast head
• Easy to use tie rod assembly design ensures cartridge centralisation (for a reliable knife edge seal) that enables the use of either 9.75” or 10” cartridge length configurations (or multiples) in the same housing
• Dual purpose head accepts SOE code 3 and DOE cartridges
• SOE code 7 and code B adaptors available
• Available in 316L stainless steel or Hastelloy C22 for maximum compatibility
• Wide range of connection size and types, cartridge lengths and materials of construction
• PED Compliant to Sound Engineering Practice
• Full traceability on all parts, material certification packs available Rated at full vacuum and 10 bar g in liquid and gases

Cartridge Filter Features

• Melt blown polypropylene media
• Extended life version available
• Wide chemical compatibility
• Materials meet US FDA title 21 and USP Class VI requirements
• Meets the requirements for food contact as detailed in European Regulation (EC) Number 1935/2004
• CRY Cryptosporidium grade
• One piece high strength all polypropylene support core up to 1017mm (40”)
• High surface area, resulting in low clean and excellent dirt holding capacity
• 100% thermally welded construction for maximum integrity and strength
• All polypropylene hardware
• Optional high strength core for improved thermal stability at continuously elevated temperatures
