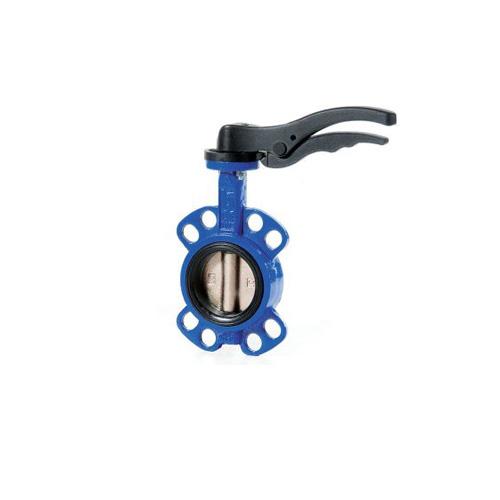

Multi-flange Wafer Pattern Butterfly Valve – Aluminium Bronze Disc – NBR (Buna) Liner

ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Aluminium Bronze Disc, NBR (Buna) Liner, Locking Lever Operation 1½” to 12”, Gearbox Operation 14” to 24”, Complies with 97/23/CE (PED) Directive CE 1115 Rated PN16 1½” to 12”, PN10 14” to 24”, Temperature -10°C to 80°C. Note: Gearbox Operation Available for all sizes, please enquire. 1½” to 16” to fit PN6, PN10, PN16, ANSI 150, Table D and/or Table E Flanges. 18” to 24” to fit PN16 Flanges.
