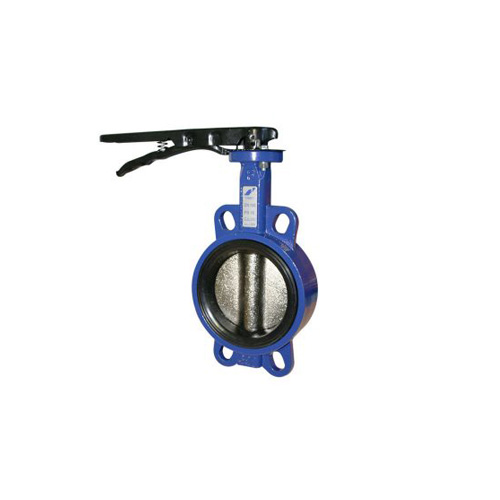

Multi-flange Wafer Pattern Butterfly Valve – Nickel Plated Ductile Iron Disc – EPDM Liner

ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Nickel Plated Ductile Iron Disc, EPDM Liner, Lever Operated upto 12”, Gearbox Operation 14” to 24”, Complies with 97/23/CE (PED) Directive CE 1115 Rated PN16 2” to 12”, PN10 14” to 24”, Temperature -10°C to 120°C. Note: Gearbox Operation Available for all sizes, please enquire. 2″ to 16” to fit PN6/10/16, ANSI 150, Table D/E Flanges. 18” to 24” to fit PN16 Flanges.
