Reverse Osmosis Controller – OS3030 (1 conductivity meter, man. Temp. Comp. 4 inputs and 3 outputs). | |
Model | Power in / out |
OS3030 | 24/24, 115/115 or 230/230 VAC |
OS3030 | 115/24 or 230/24 VAC |
Reverse Osmosis Controller – OS3030IF (1 conductivity meter, man. Temp. Comp. 5 inputs and 5 outputs). | |
OS3030IF | 24/24, 115/115 or 230/230 VAC |
OS3030IF | 115/24 or 230/24 VAC |

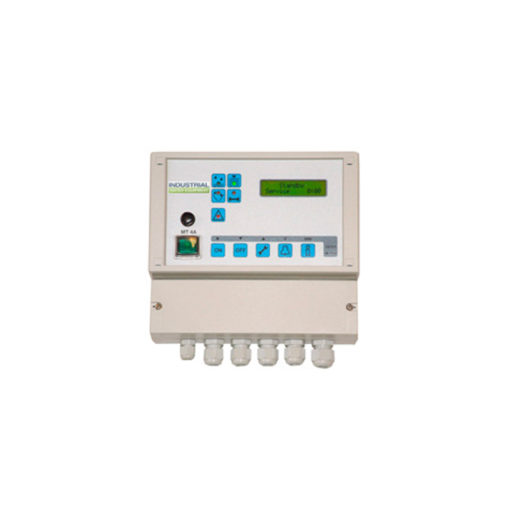

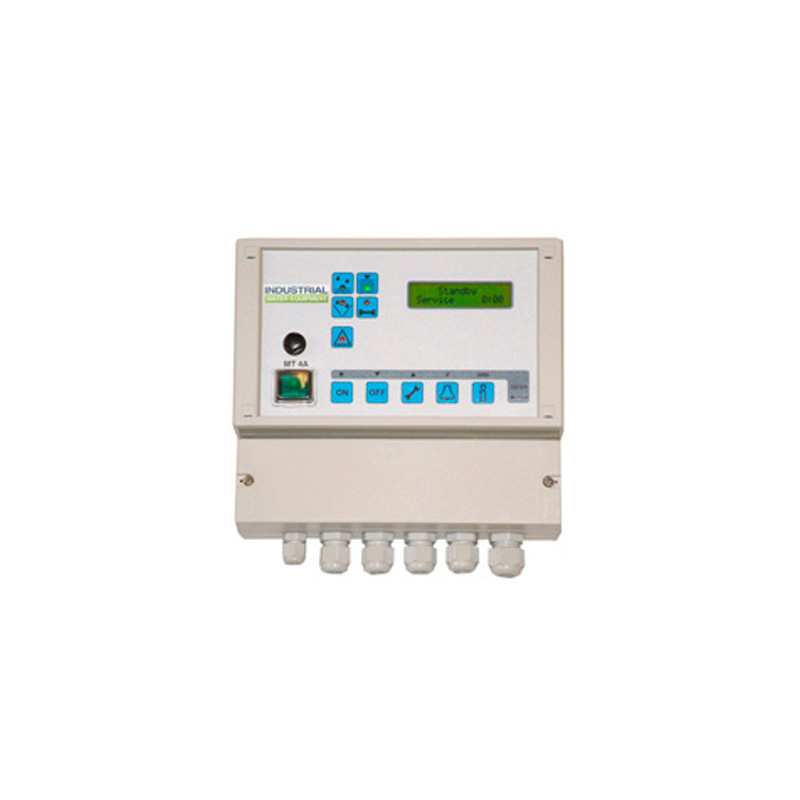

Reverse Osmosis Controller – OS3030
- User operated programming using double row of illuminated LCD display
- Display text in English, French, German, Italian, Spanish, Czech or Dutch
- Simple control utilising easy to follow symbols
- Built-in audio signal for 12 programmable signal indicators
- Adaption to user specific requirements by means of options programmable on site
- Simple operation by means of a few clear operating symbols
- Can be used for various sizes of plant
- 10 programmable stages with several steps in some cases: production, stand-by, rinse after production, rinse during extraction, rinse during stand-by, stop when producing, stop when rising, stop when breakdown, maintenance and stop for maintenance
- Desalinated water production controlled manually or using level switch
- Locking of maintenance setting and programming possible by use of code number
- Input of service telephone number
- Extensive status report facility using information button
- 2 inputs: container full and container empty
- 2 programmable inputs: stop, excess pressure, concentrate, ext. signal switch or low water level
- 1 optional programmable input (IF circuit board)
- Inputs programmable active open or closed
- Optional installation of safety switch for high pressure pump
- 1 connection for conductivity sensor (cell constant programmable from 0,01 to 10,00 cm-1)
- Manual temperature compensation
- 3 Outputs: High pressure pump, inlet valve, and concentrate rinse valve
- 2 optional programmable outputs: dosing, extra program, permeate valve or indicator relay (IF circuit board)
- Output relay programmable active under current or not under current
- Secure from power failure as all data is stored long-term without battery
- Efficient micro controller with watchdog, illegal operation code and cycle monitoring
- Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
- Available for wall-mounting
- Available (input /output) : 24/24VAC, 115/115VAC, 230/230VAC, 115/24VAC, 230/24VAC
