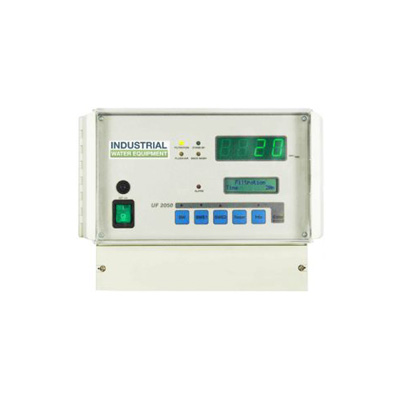

Ultra Filtration Controller UF2050

Ultra Filtration Controller – UF2050

• User operated programming using double row of illuminated LCD display
• Display text in English, French, German or Dutch
• Adaption to user specific requirements by means of options programmable on site
• Programming a service telephone number possible
• Large green LCD-display showing remaining time for the current stage
• 11 programmable stages with programmable times and activation of relay outputs
• Top/bottom mode for filtration and backwash
• Extensive status report facility using information button

• 4 digital inputs : high level clean water tank, low level clean water tank, low level raw water tank, filtration start and overpressure
• 11 relay outputs : 1 potential free output programmable for stages or alarm output and all others free programmable for each stage
• Secure from power failure as all data is stored long-term without battery
• Efficient micro controller with watchdog, illegal operation code and cycle monitoring
• Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
• Available for wall mounting(UF2050) and panel mounting(UF2051)
• Available (input /output) : 24VAC/24VAC, 115VAC/115VAC, 230VAC/230VAC, 115VAC/24VAC, 230VAC/24 VAC and 240VAC/24VAC
