Water Meters – Multijet Beta SDC

[su_spacer size=”30″] [full_width padding=”0 0 0 40px”] [su_spacer size=”30″]

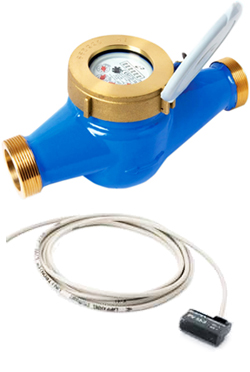

Multi – jet water meter with dry dial counter

Multi-jet water meter for potable cold water, dry dial, straight reading, magnetic drive. Certified MID 2004/22/CE Modules B + D or EEC 75/33.

Body manufactured in brass.

PULSE OUTPUT AVAILABLE

• Straight Reading or Pulsed Output
• Universal Reed Switch, can be set to k1, k10 or k100
• WRAS Approved
• Reed Switch can be set for 1 pulse per ltr, 1 pulse per 10 ltr or 1 pulse per 100 ltr simply by changing switch position on the water meter.

[/full_width] [su_button url=”https://www.industrialwaterequipment.co.uk/wp-content/uploads/2018/02/beta-sdc.pdf” style=”glass” background=”#196299″ color=”#ffffff” size=”2″ radius=”5″ icon=”icon: file-pdf-o” text_shadow=”0px 0px 0px #145485″]DATASHEET[/su_button] [su_spacer size=”30″]

---

*Reed Switch option available at checkout.

[product_table search_box=”false” totals=”false” page_length=”false” reset_button=”false” columns=”image,name,price:Price Inc VAT,add-to-cart” show_quantity=”true” image_size=”80×80″ sort_by=”price” category=”multijet-beta-sdc”]

---

Performance according to MID 2004/22 CE Directive

[su_spacer size=”30″]

Size		Permanent Flow	Maximum Flow	Transitional Flow	Minimum Flow	Working Pressure	Minimum Reading	Maximum Reading	Temperature Class
(mm)	(inch)	Q3 (m3/h)	Q4 (m3/h)	Q2 (l /h)	Q1 (l /h)	(bar)	(l)	(m3)
13/15	1/2"	2,5	3,125	50,0	31,3	16	0,05	99.999	T30/T50
20	3/4"	4,0	5,000	80,0	50,0	16	0,05	99.999	T30/T50
25	1"	6,3	7,875	126,0	78,8	16	0,05	99.999	T30/T50
30	1"1/4	10,0	12,500	200,0	125,0	16	0,05	99.999	T30/T50
40	1"1/2	16,0	20,000	320,0	200,0	16	0,5	999.999	T30/T50
50	2"	25,0	31,250	500,0	312,5	16	0,5	999.999	T30/T50

---

[one_half padding=”0 0 0 0px”]

Typical Error Curve

Pressure Loss Diagram

Dimensions

[/one_half] [one_half_last padding=”0 0 0 0px”] [su_spacer size=”90″]

(mm) SIZE (inch)	13/15	20	25	30	40	50 *
	1/2"	3/4"	1"	1"1/4	1"1/2	2"
L (mm)	110 - 145 165 - 170	160 190	160 260	160 260	200 - 300	300
H (mm)	105	110	115	120	150	180 fil 190 fla
Total Length of Connectors (mm)	80	100	100	120	140	160

[/one_half_last]
